HZS50 Concrete Batching Plant

HZS50 Concrete Batching Plant

China Hot SaleHZS50 Concrete Batching PlantHZS50 concrete batching plant is designed to have a production capacity of 50m3/h. It consists of JS1000 forced concrete mixer,PLD batching machine,screw conveyor, cement silo (the quantity can be customized according to the customer's demand), ho

  • Input Size
  • JS1000 double horizoType
  • 50 m³/hCapacity

Application of HZS50 Concrete Batching Plant


China Hot Sale HZS50 Concrete Batching Plant



HZS50 concrete batching plant is designed to have a production capacity of 50m3/h. It consists of JS1000 forced concrete mixer,PLD batching machine,screw conveyor, cement silo (the quantity can be customized according to the customer's demand), hopper lifting system, intelligent computer control room, metering system, and can produce plastic concrete,dry hard concrete and other types of concrete,which is suitable for medium-sized and above construction sites,precast plant,commercial concrete production plant.



Advantages of HZS50 Concrete Batching Plant


Product characteristics

1.It adopts JS1000 double horizontal shaft forced concrete mixer with strong mixing force, even mixing and high production efficiency.

2.The electronic weighing system used has a buffer device and an automatic compensation function, and the metering accuracy is extremely high.

3.concrete batching plant adopts muffler for pneumatic system exhaust and unloading equipment to reduce noise pollution.

4.It can be used alone or with dump trucks, dump trucks, mixer trucks, and can also be customized according to user requirements.

5.Convenient transportation, save sea freight cost, can be transported anytime and anywhere according to customer's demand 

6.Fully automatic PLC control system, simple, convenient and safe operation, all equipment can be customized according to customer's capacity requirements or site requirements.

7.The equipment takes up little space and is very easy to assemble at the construction site. It saves the cost of installation workers and foundation cost. It is also very convenient to repair or replace any wearing parts later. 

8.The whole set of equipment can be placed directly in a 20' or 40' HQ container, which is convenient for transportation and installation and saves time.


Get Price List
  • High Quality

    Convenient transportation, crawler walking, no damage to the road, equipped with multi-functional accessories, Drived by oil and electricity.

  • Customized Design

    The whole crushing plant adopts all-wheel drive to realize rotating direction in place, with perfect protection function, especially suitable for narrow and complex site.

  • Good Performance

    The crawler crushing plant could be optional for jaw crusher, impatct crusher, cone crusher, VSI crusher etc.

Product features

It can work uphill to meet the crushing requirements of mining, hydropower station, coal mine and other projects.

  • Good efficiency limestone washing machines spiral Washer delivery to Trinidad and Tobago
  • Henan terbaikmachinery provide high efficiency river stone separator washing plant for customer
  • Henan terbaikmachinery provide Stationary powerscreen Scoria and Basalt Screening and Washing Plant
  • How to build a good 200TPH Aggregates Stone processing Plant In Philippines

Working principle


Main components of the system

1.JS1000 concrete mixer

Shaft end sealing technology effectively prevents soil from entering and facilitates   cleaning;

Anti-sticking shaft technology, reducing the frequency and workload of mainframe cleaning;

Long service life;

Easy to operate and high mixing efficiency.

2. Weighing System - PLD1600

It is mainly divided into aggregate weighing, powder weighing and liquid weighing;

High degree of intelligence, all weighing adopts electronic scale, microcomputer control;

High metering accuracy with buffer device and automatic compensation;

Aggregate weighing accuracy is controlled at ±2%;

Weighing accuracy of cement, powder, water and admixture reaches ±1%.

3. Material storage system - cement silo

Powders are stored in fully enclosed steel silos;

Additives are stored in steel containers;

Good storage.

4. Electronic control systems

Intelligent operating system, automatic system diagnosis, stable and reliable;

Authorization control can be set up according to customer requirements;

The operator's entire operation can be recorded;

Scheduled production orders can be set at any time;

Easy to operate, friendly interface, can fully use the mouse to operate the system;

Improve production logs and record abnormalities to ensure production safety;

Reliable and efficient production management system;

Computer hot backup function.

Good storage.

5. Dust removal system

Critical dust removal techniques based on timing control;

Equipped with an intelligent pressure safety system;

The dust collector and the aggregate buffer hopper are of integrated design with high dust removal efficiency;

Material yard, batching silo loading point using spraying system to reduce dust;

The powder bin adopts imported dust collector.

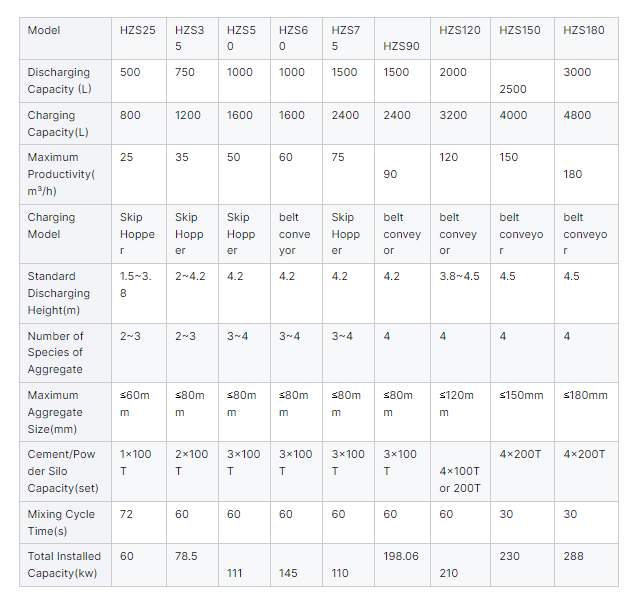

Specification




*The output will vary according to different materials, feed particle size and other factors
